New! GroundHex Stabilizer Request a personalized quote.

The GroundHex Stabilizer system is a practical, low-maintenance ground reinforcement solution designed for both equine and cattle facilities. It’s ideal for laneways, feed areas, gateways, wash bays, and other erosion-prone spots. The system installs directly over compacted soil, eliminating the need for expensive concrete foundations while keeping high-traffic areas firm and mud-free.

Key Features

• Heavy-duty load bearing – built to withstand horses, cattle, and farm vehicles.

• Free-draining surface – keeps areas drier and easier to clean.

• Prevents erosion – especially around feed pads, troughs, gateways, and holding areas.

• Cost-efficient setup – no need to pour a concrete slab.

• Improves animal welfare – reduces slipping, lameness, and hoof problems in wet or unstable areas.

Technical Specifications

• Thickness: 50mm

• Cell Size: 500mm x 600mm

• Panel Size: 4 cells per panel = 1000mm x 1200mm

• Material: 100% recycled polypropylene

• Crush Strength: 225t/m²

Benefits

• Provides a stable surface for horses and cattle in high-use zones.

• Saves time and money on constant gravel or dirt repairs.

• Minimises slips and leg injuries in livestock.

• Reduces mud and manure contamination between areas.

• Can be used as a base layer under rubber mats in yards, stables, or dairy sheds for extra comfort.

Applications

• Laneways & breezeways

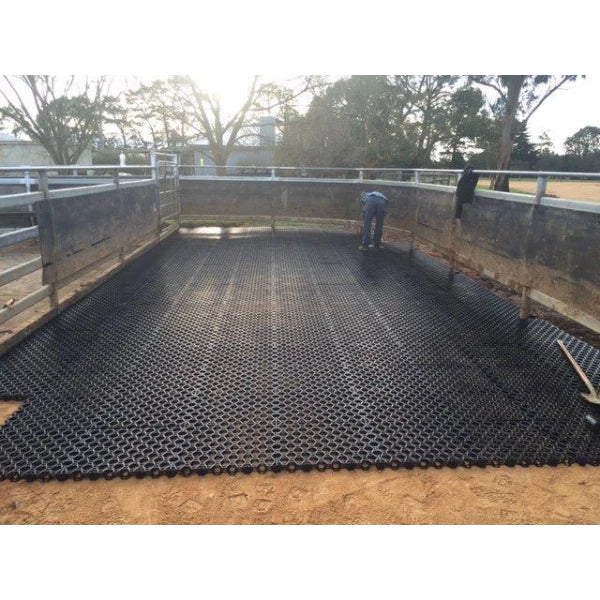

• Dairy feed pads & holding yards

• Around water and mineral troughs

• Crossovers & gateways

• Wash bays & day yards

• Stables and cattle sheds

What It’s Made From

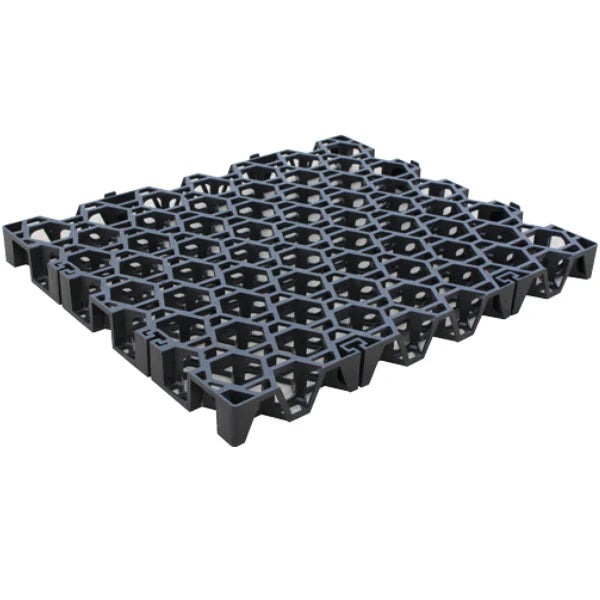

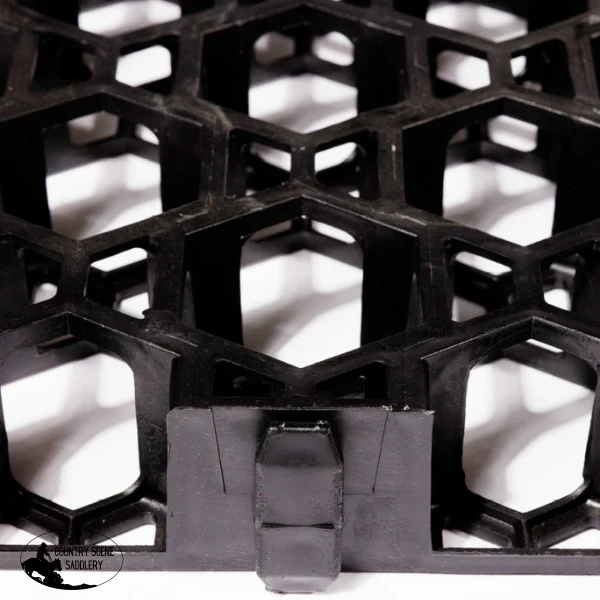

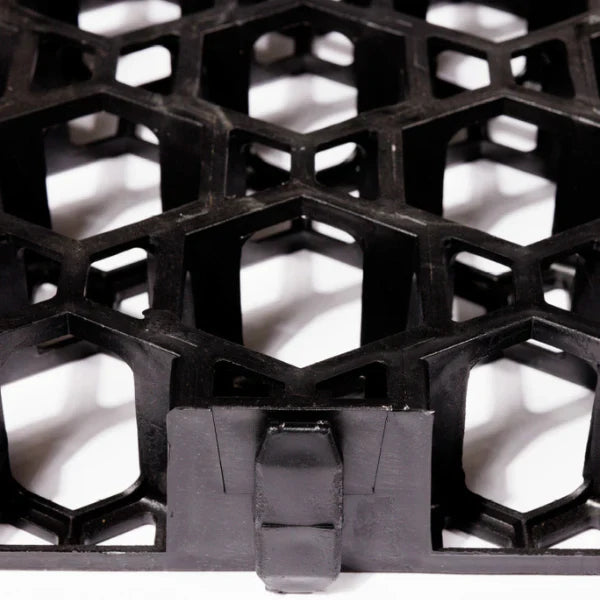

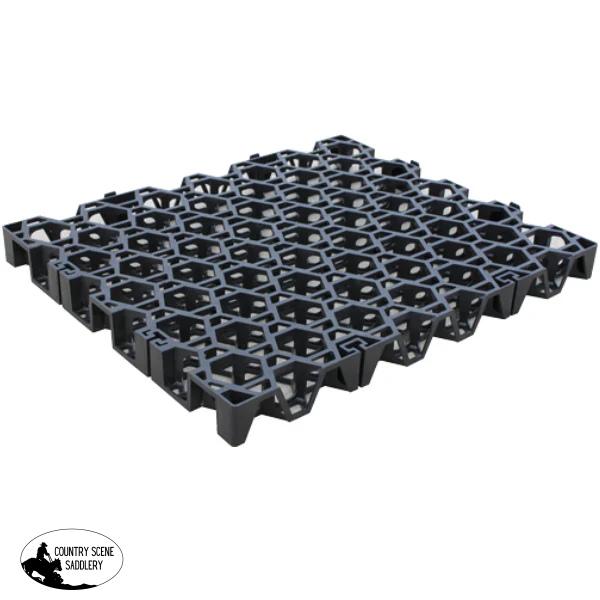

The GroundHex Stabilizer is made from recycled polypropylene in a honeycomb grid structure. This design makes it lightweight, easy to install, and extremely durable under the pressure of both horses and cattle. Panels come pre-clipped for quick installation and can be cut to size when needed.

Installation Guide

1. Level and prepare the area.

2. Spread and compact a base layer of crusher dust or fine gravel.

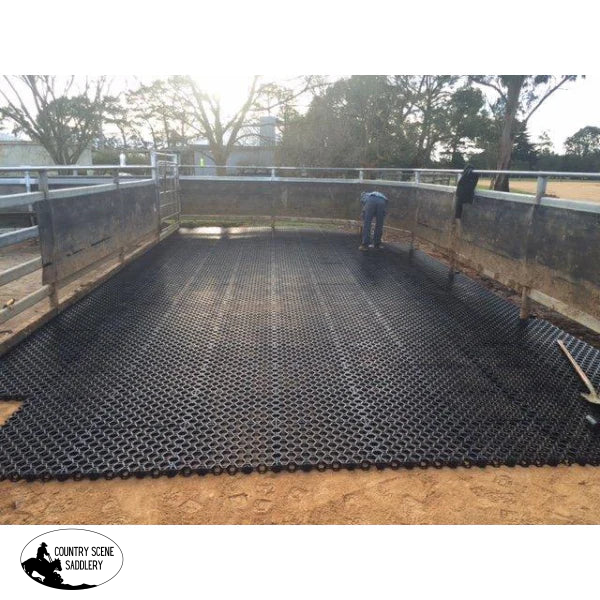

3. Lay GroundHex Stabilizer panels one at a time, locking them together.

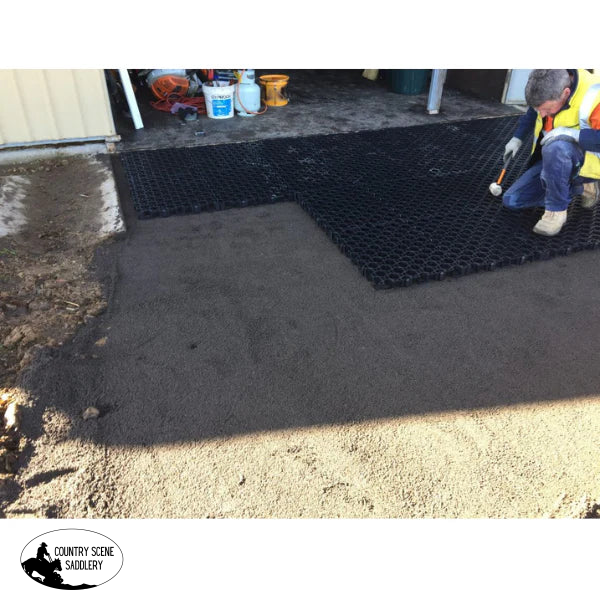

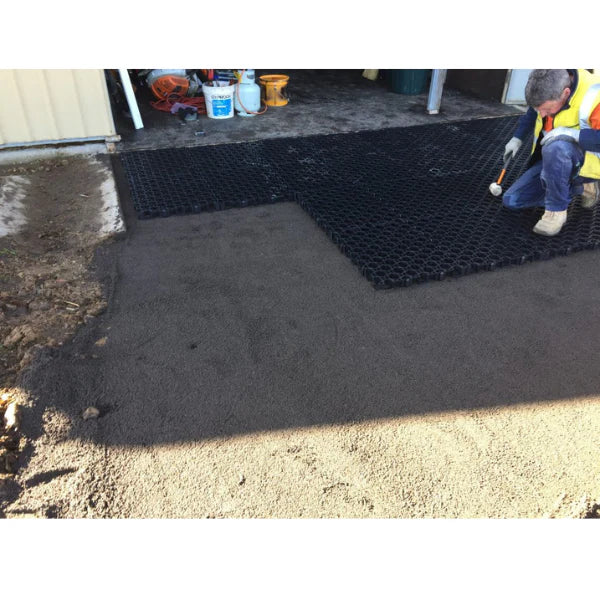

4. Tap panels into place with a rubber mallet.

5. Cut panels to size where required.

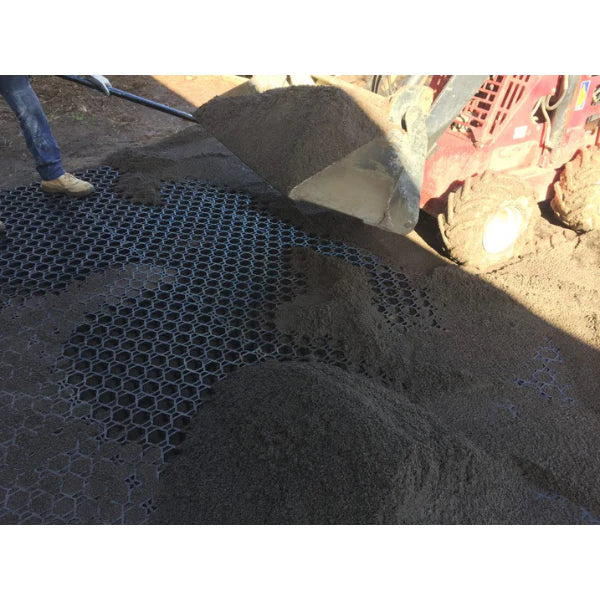

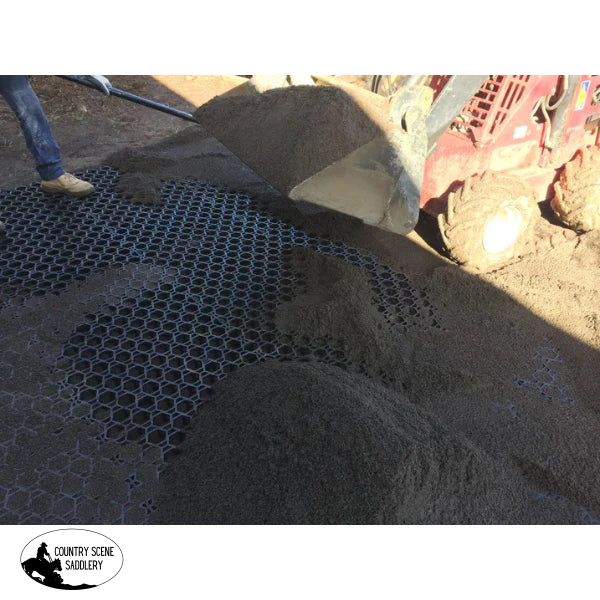

6. Fill the cells with crusher dust, sand, or soil.

7. Compact the surface.

Optional: Lay rubber mats directly over the stabilizer in areas needing extra traction or comfort (e.g., cattle holding yards, stables, wash bays). Use fixing screws if secure fastening is required.

Please email your inquiry to countryscene7767@gmail.com
